Aircore MC
Mission Critical
AFE Technology for Cleaner, Smarter, Resilient Power.
Do more with less.
Less energy. Fewer motors. Lower harmonics.
Less energy
(kWh & kW)
- Most EC motors drop efficiency below 70% speed right where data centers operate most
- Infinitum stays efficient at every step delivering 10–15% higher system efficiency
- Higher efficiency directly translates into lower energy use and operating costs.
Fewer motors =
Less complexity

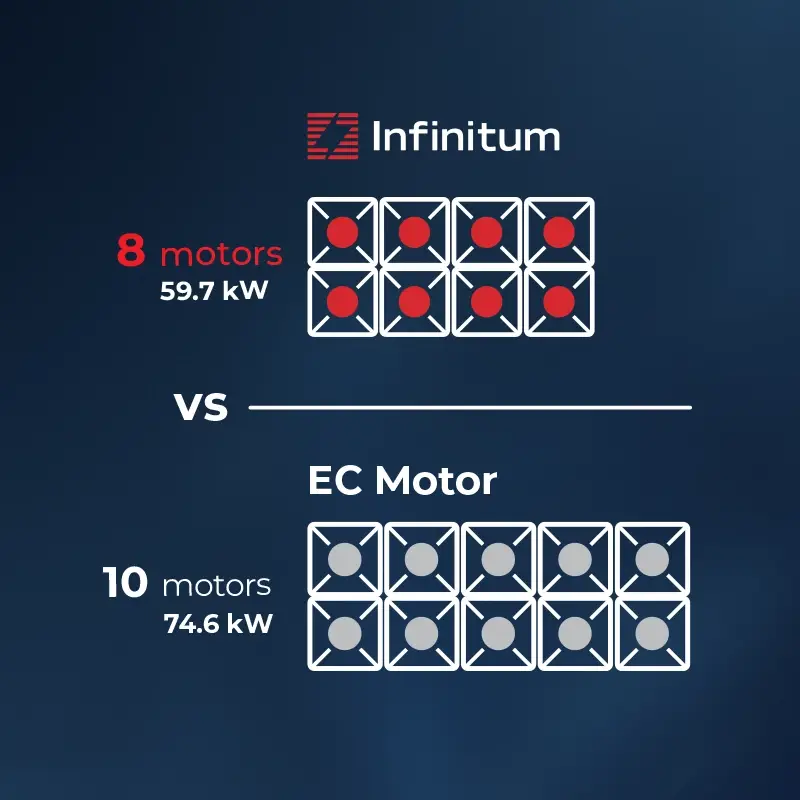

- Higher-HP designs hit required airflow with fewer units
- Fewer units = lower total kW and a leaner system
- Right-sizing frees electrical capacity for IT load – less wiring, less infrastructure, faster installation.
Very low
harmonics.

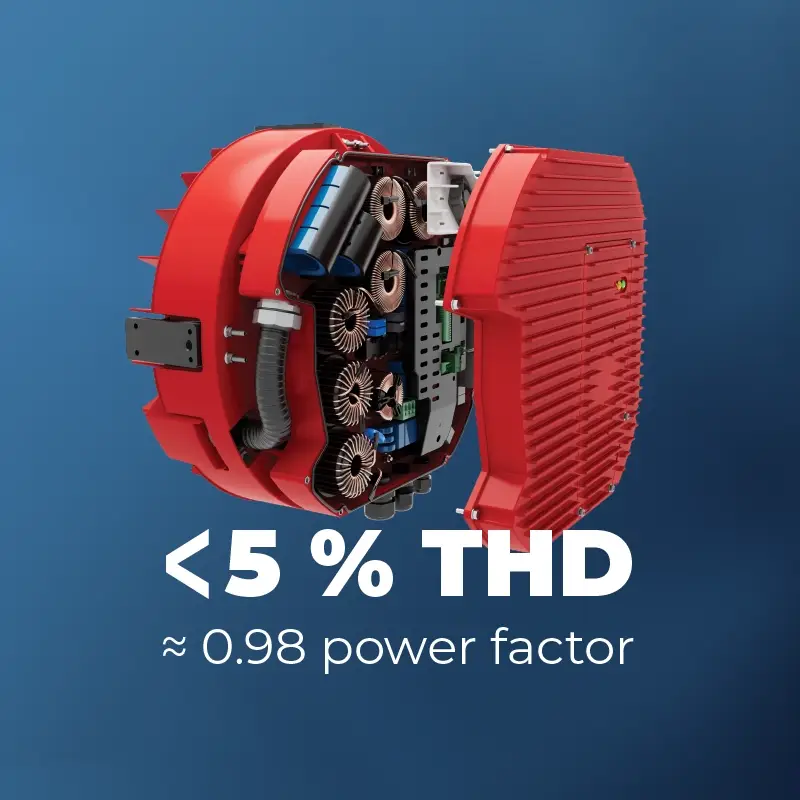

- Infinitum’s integrated AFE kills harmonics at the source
- Delivers clean, stable power without extra hardware, no additional expensive active/passive filters
- IEEE-519 compliant with no added cabinets, filters, or losses

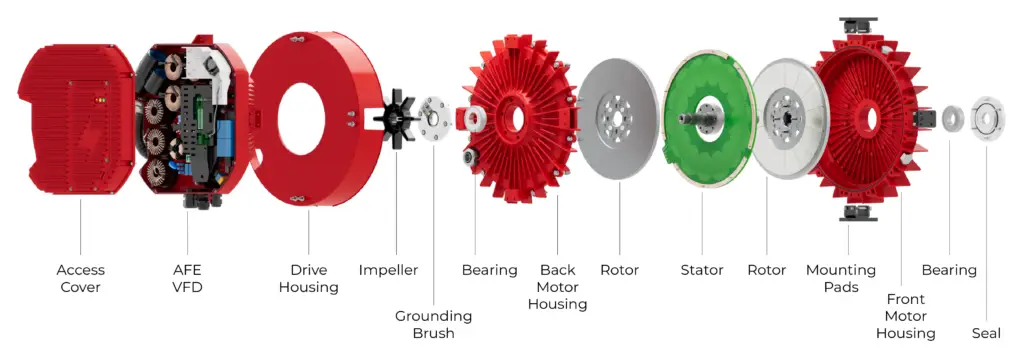

Wideband harmonic mitigation
With Active Front End (AFE) technology
Clean, stable, predictable power
designed directly into the system

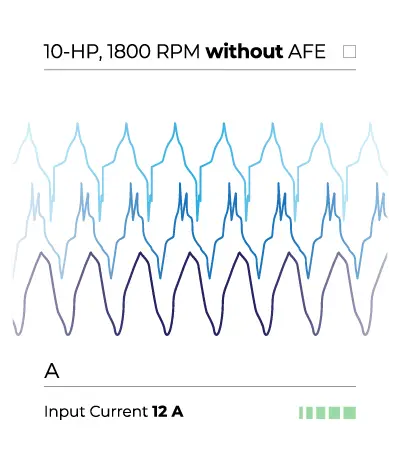

10-HP, 1800 RPM without AFE
- Power Factor 82%
- THDi >40% and THDv 4.7%
- Input Current 12 A
- System Efficiency 91%
10-HP, 1800 RPM with AFE
- Power Factor 98%
- THDi 1.4% and THDv 2.9%
- Input Current 11 A
- System Efficiency 91%
Optimized for mission critical applications

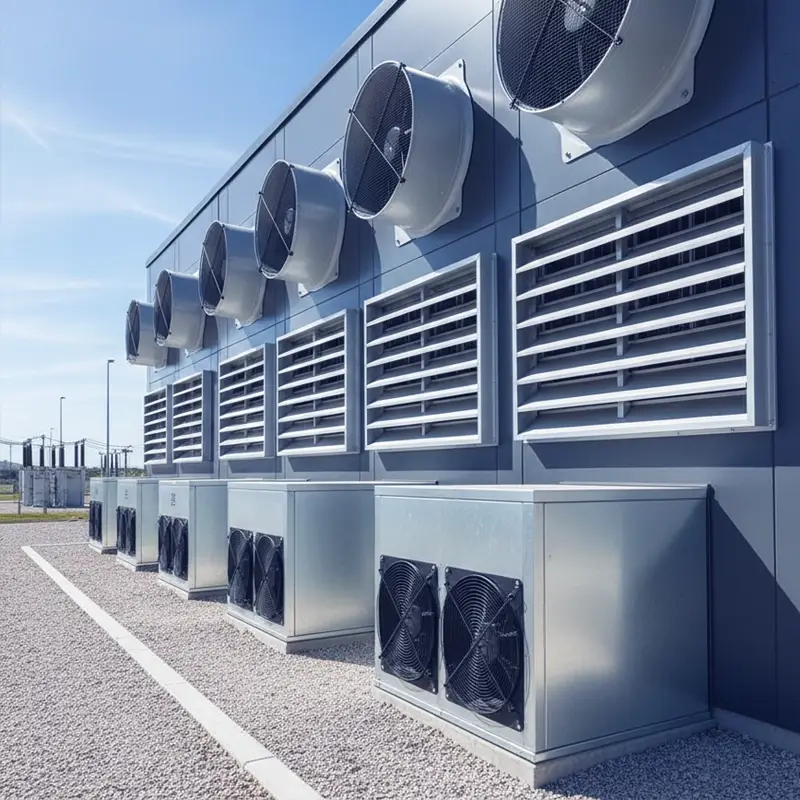

HVAC fans
Mission Critical motors deliver clean, efficient, and reliable performance for HVAC fan systems.
Integrated Active Front End (AFE) technology enables ultra-low harmonics and near-unity power factor, reducing electrical stress while meeting IEEE 519 requirements. With high system efficiency and power-loss ride-through capability, these motors ensure stable airflow and uninterrupted HVAC operation.
Hospitals
In hospital HVAC systems, Infinitum’s mission critical motors support continuous, stable airflow essential to patient safety and clinical operations.
Integrated AFE technology delivers ultra-low harmonics and near-unity power factor to protect sensitive medical equipment and support IEEE 519 compliance.
High efficiency and high-resistance grounding (HRG) further enhance reliability for critical healthcare environments.
Data centers
While conventional EC motors lose efficiency below 70% speed, Infinitum maintains a rock-steady performance curve, delivering 10–15% higher fan-system efficiency at real-world operating conditions.
Higher-HP designs achieve the same airflow with fewer motors, lowering total kW, simplifying infrastructure, and freeing electrical capacity for IT load, while integrated AFE technology eliminates harmonics at the source, driving cleaner power and stronger data center economics.
Airports
In airport HVAC systems, where massive facilities operate 24/7, loads fluctuate constantly, and downtime isn’t an option, Infinitum’s mission critical motors deliver reliable performance at scale.
A steady efficiency curve at real-world operating speeds helps reduce energy use during off-peak conditions, while higher-HP designs achieve required airflow with fewer motors, lowering total kW and simplifying infrastructure.
Solutions to fit your needs
The market’s most comprehensive, customizable range of power and frame sizes.

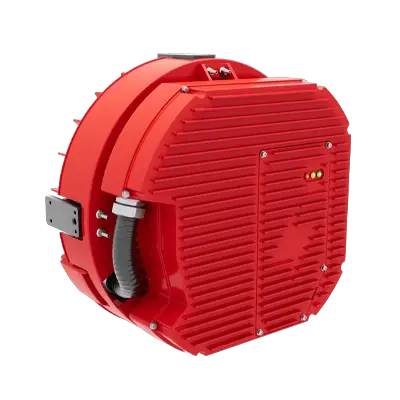

Aircore MC Frame 15
Power: 5-7 HP (3.73-5.6 kW)
RPM Range: 360 – 3600 RPM
Weight: 90.6 lbs (41.10 kg)
Rated Torque: 20 Nm
IP Rating: IP65
Supply Voltage: 460VAC
Dimensions: 324.4 x 417.3 mm with shaft

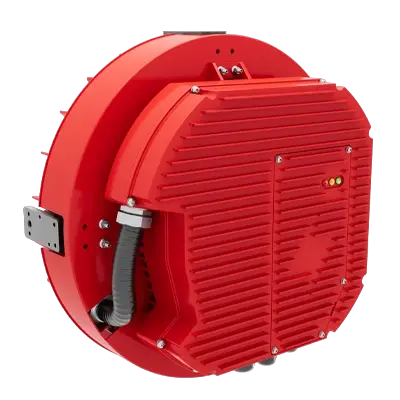

Aircore MC Frame 18
Power: 7.5-10 HP (5.6-7.46 kW)
RPM Range: 360 – 3600 RPM
Weight: 104.6 lbs (47.45 kg)
Rated Torque: 30 Nm
IP Rating: IP65
Supply Voltage: 460VAC
Dimensions: 322 x 472 mm with shaft

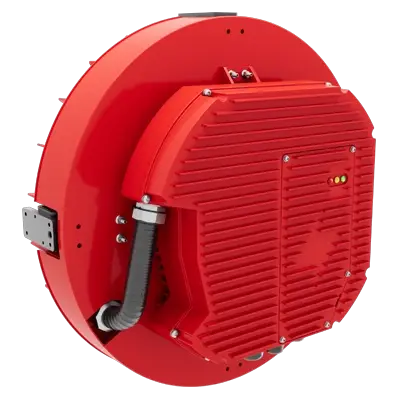

Aircore MC Frame 20
Power: 15 HP (11.2 kW)
RPM Range: 360 – 3600 RPM
Weight: 136 lbs (61.69 kg)
Rated Torque: 60 Nm
IP Rating: IP65
Supply Voltage: 460VAC
Dimensions: 326.5 x 537.3 mm with shaft
Power quality starts here
Motors made for mission critical applications
Motors ready for application specific configurations with firmware and name-plate direct from our factory including multiple agency approved ratings.

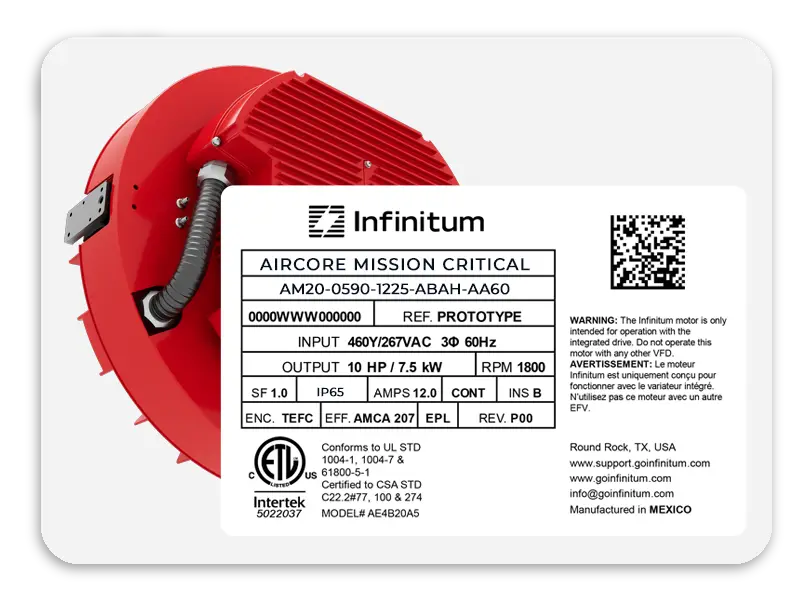

Customize a name plate to meet your specifications

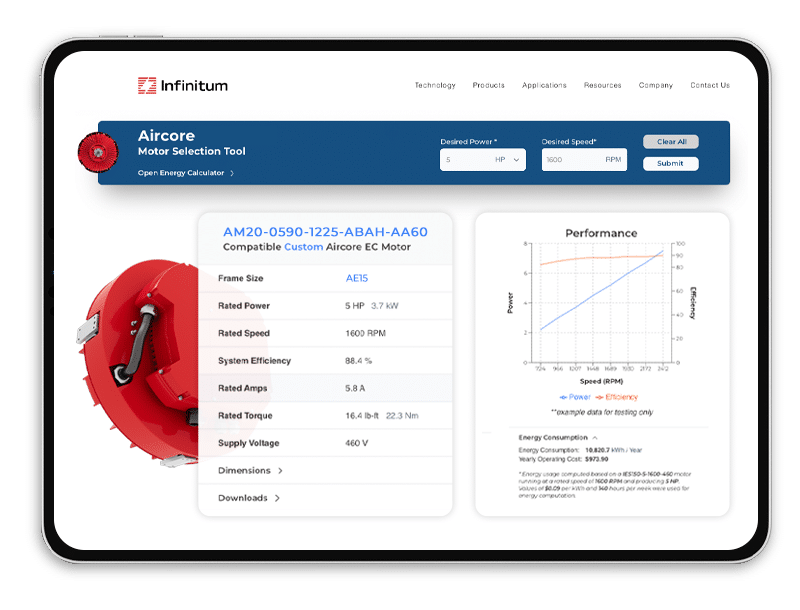

Configure and customize a name plate to meet your exact specifications with our Motor Selection Tool. Preview power, amps, energy savings and more.
Infinitum’s ability to customize a three-horsepower motor for lower operating speeds allows us to reduce amperage requirements by three to four amps per motor...
When deployed across 30 motors, that's a lot of power. I don't have to support.
Customer
Strategic Sourcing Manager
Get Started
The best way to experience and evaluate industry-changing technology is to try it out firsthand.
