Driving efficient fan applications

Infinitum has reimagined the electric motor, making it possible to move large amounts of air more efficiently and sustainably than ever before. Our innovative motor design replaces the iron-core stator found in traditional motors with a PCB stator that increases durability and reliability in a form factor that is significantly smaller and lighter. Applications such as fan arrays built using our motors are easier to ship, install, and service. Additionally, our motor’s integrated variable frequency drive (VFD) allows you to optimize operational control and reduce energy costs by more than 50 percent.

HVAC APPLICATIONS IN ACTION


Motors for any fan application


Red IEs motor mounted to a centrifugal fan

Centrifugal fans

Centrifugal fan assemblies are often heavy and energy intensive. Our revolutionary motor design reverses this trend by offering the power you need in a smaller, lighter form factor that can be mounted directly to your fan application. This innovative design not only reduces the curb space required for your air handling units, it also reduces losses by increasing wire-to-air efficiency and removing high-maintenance components such as belts. Fan arrays using our multi-motor direct drive configuration require less labor to install, are easier to maintain, offer redundancy and higher reliability, and will reduce energy usage – lowering utility costs and helping organizations meet sustainability goals and requirements.

Axial fans

Constructed with lightweight yet durable materials, our direct-drive motors greatly simplify axial fan configurations. Since our innovative air-core PCB stator replaces the traditional heavy iron core stator, less of a support structure is needed to mount motors and enclosures can be made much smaller, lowering assembly costs. With a VFD directly driving each motor, unreliable belts are now a thing of the past. The resulting beltless axial fan assembly is highly efficient and compact, and significantly increases reliability while reducing maintenance costs.

Red IEs motor mounted to an axial fan

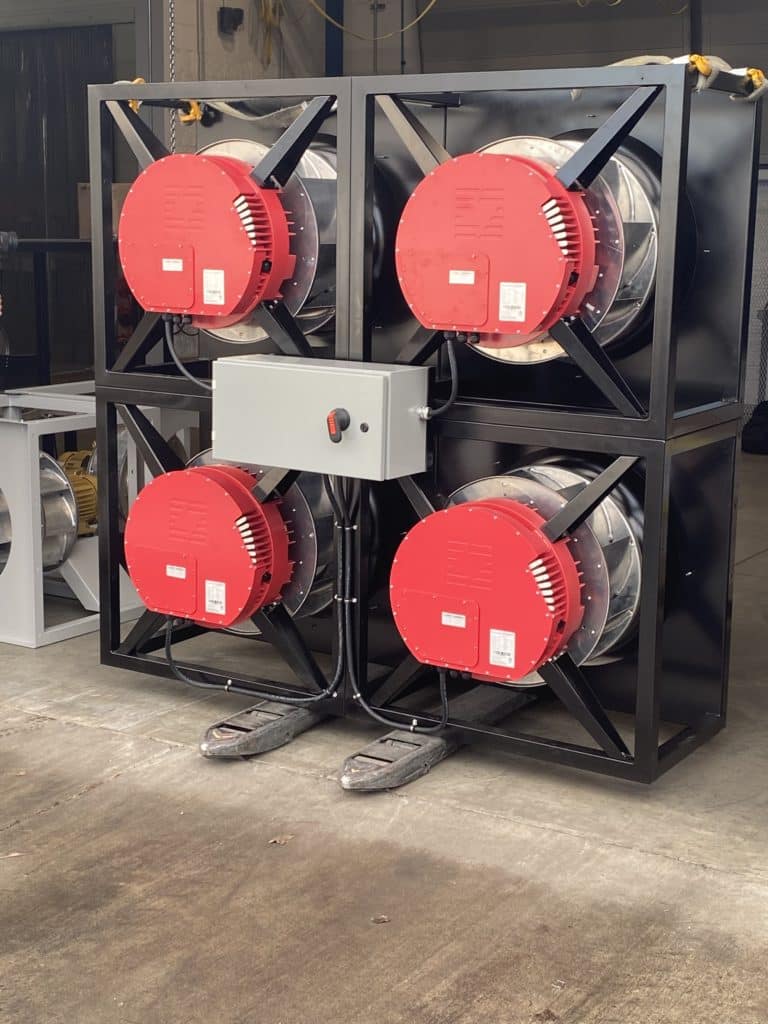

Improving efficiency and performance at BASX:


See how our motor’s innovative design and form factor helps BASX Solutions reimagine the design of its fan arrays, reducing labor costs and lead times.

BASX Solutions is using our unique integrated motor and drive to build fan arrays that are significantly smaller, lighter, quieter, and more energy efficient.

Designing a fan cube or fan array using Aircore EC motors

There are several mounting scheme possibilities for using Aircore EC motors in a fan cube or fan array design. Our design asset cites real-world examples of three mounting schemes- welded angle steel, bent metal and tubular mount- to assist you as you design your next fan cube or fan array.

DOWNLOAD THE DESIGN ASSET

Moving air efficiently in your facility

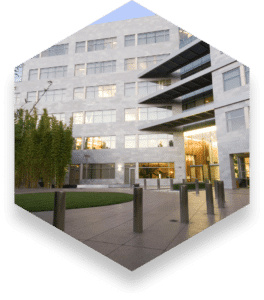

Commercial HVAC

Significantly reduce energy usage and increase system lifespan by programming our motor’s VFD to intelligently power the numerous fans required for your commercial HVAC systems.

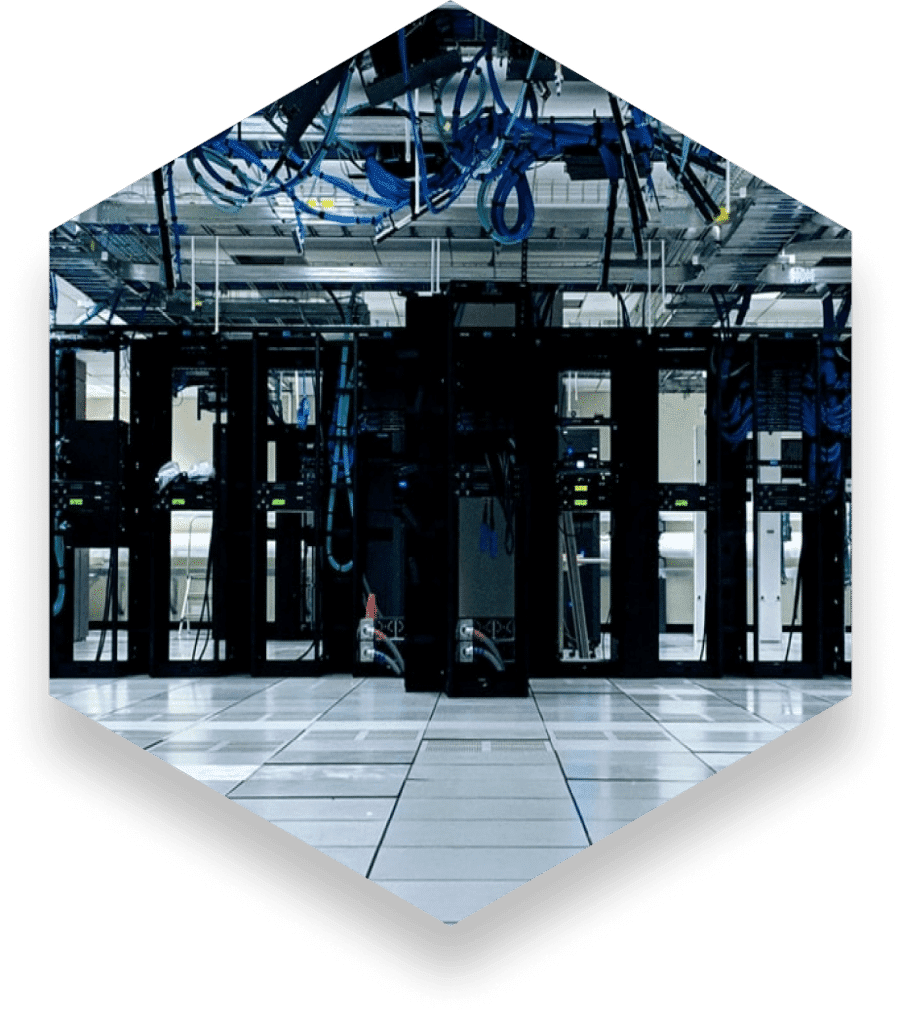

Data centers

With ~40 percent of a data center’s energy usage dedicated to powering 24/7 cooling equipment, reducing energy usage is essential. Powering cooling devices with our motors can help by making cooling efforts 10 to 15 percent more efficient.

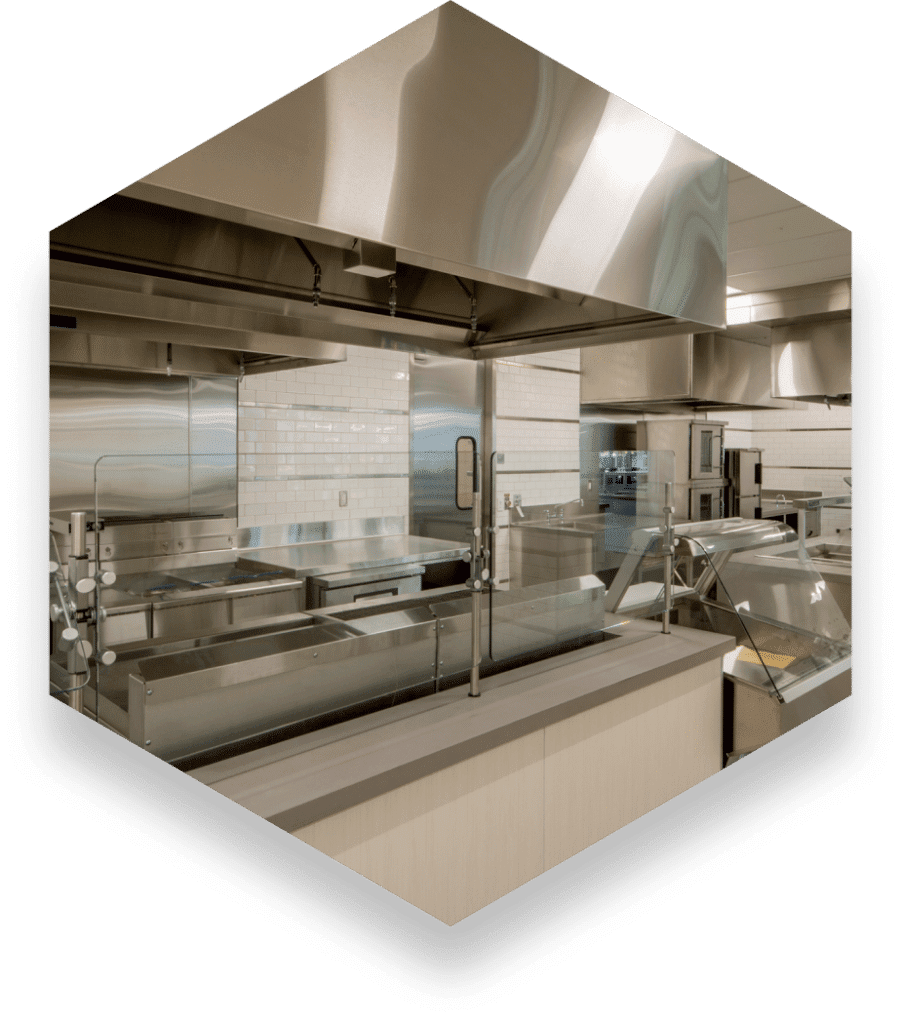

Exhaust fans

With our direct drive motors powering your exhaust fans, components prone to breaking down are eliminated, keeping air flowing as required and ensuring proper ventilation to keep employees safe.

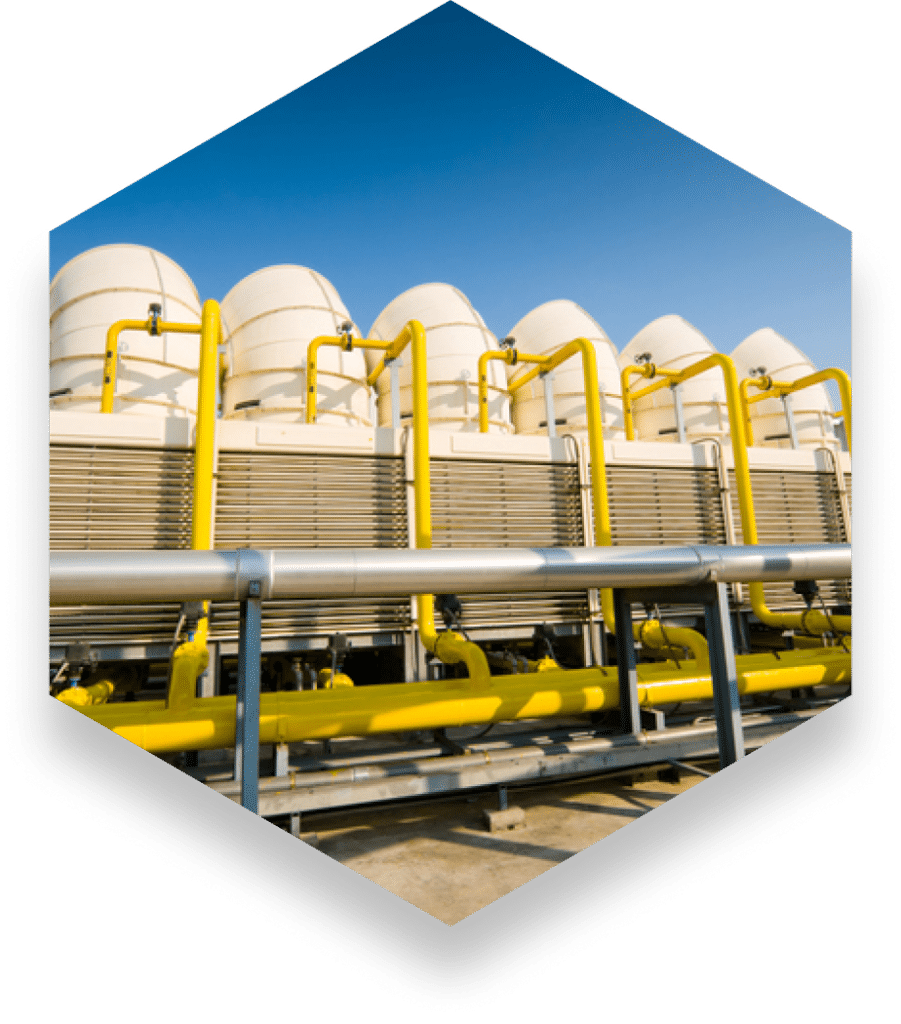

Cooling towers

Our innovative lightweight PCB stator combined with low-volume, high-energy product magnets and direct coil cooling provides two to three times the current density of a conventional motor, helping you optimize the energy usage of your cooling towers.


Key benefits for fan applications

Superior wire-to-air efficiency

Our innovative stator design means our motors are inherently more efficient than EC and typical induction motors, meet or exceed AMCA 207 and IE5 efficiency ratings, and offer superior wire-to-air efficiency.

Small and lightweight

Fan arrays powered by our small, lightweight motors require much less curb space and heavy equipment is not needed for installation, making retrofit projects minimally disruptive and more cost effective.

Built-in variable motor control

With our state-of-the-art VFD, you can use the communication protocol of your choice such as MODBUS or BACnet to run the motor at lower speeds, reducing overall energy usage.

Using Aircore EC motors to develop more efficient and reliable fan applications

Our Aircore EC motors are designed to work seamlessly with all types of fan applications, helping you overcome common issues associated with system design, installation, and maintenance. Built with lightweight yet durable materials, Aircore EC motors generate the same power as similarly rated traditional iron core motors, in a package that is 50 percent lighter and smaller. As a result, less structural steel is needed, making it easier to install fans and potentially eliminating the need for heavy equipment to lift fans into place. Also, downtime and maintenance costs are significantly reduced since our PCB stator was found to be up to 9x more reliable than a conventional copper wire wound stator.

LEARN MORE ABOUT AIRCORE EC MOTORS

Industry awards and memberships

Infinitum has been honored with multiple prestigious awards recently. This includes two R&D 100 awards as well as multiple AHR awards including the AHR Product of the Year Award and Innovation Awards in both the building automation and controls and ventilation categories. We also stay at the forefront of fan industry innovations and standard development through our membership in the Air Movement and Control Association (AMCA).

SEE OUR AWARDS

Related resources

Key considerations for choosing your fan motor

Learn about the factors that are most important to consider when selecting a fan motor to maximize efficiency.

4 Crucial factors for fan motor serviceability

This post discusses four things to consider when you want a more reliable and serviceable motor.

What kind of fan should I use in my application?

See the different fans available for HVAC applications and how to select the fan that will best meet your system’s needs.

Infinitum at AHR Expo 2022

Learn how Infinitum Electric is reducing curb space in HVAC applications while increasing system efficiency.

Keep your fan motor running at max efficiency

HVAC fans use a lot of energy. This post covers a number of factors that influence the efficiency of a fan motor.

An axial-flux motor for an electrified world

Dive into the future, technology, and applications of our axial-flux motor with our VP of Technology in this IEEE Spectrum article.


Infinitum in the news

Infinitum Electric Wins Two Prestigious 2021 R&D 100 Awards

The Sustainable Industrial Revolution Is Just Getting Started

Sustainable Power Generation | Five Ways to Design Products that Go Beyond Efficiency

Experience our motors

The best way to experience and evaluate industry-changing technology is to try it out firsthand.

REQUEST AN EVALUATION MOTOR
