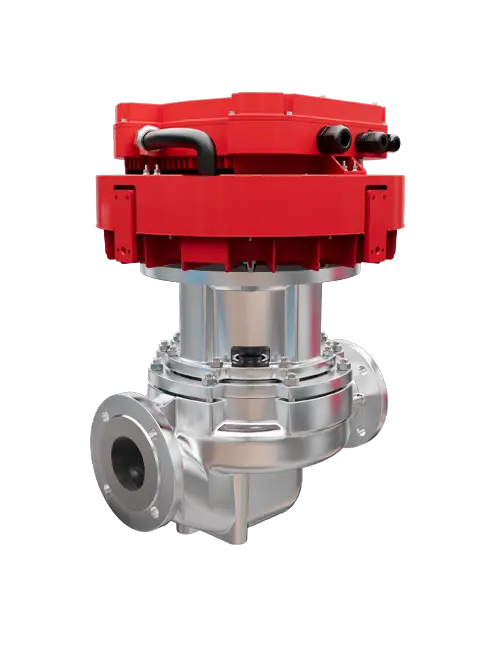

Aircore EC+ for Pumps is a powerful motor system designed for pumping applications in commercial HVAC, water/wastewater, healthcare, agriculture and food & beverage where uptime, serviceability and efficiency matter most.
Combining Infinitum’s award-winning Aircore motor technology with an integrated VFD and IoT capabilities, Aircore EC+ for Pumps delivers more control, more reliability and superior wire-to-water efficiency in a compact, modular package for longer service life.
Pumps in mission-critical facilities run 24/7, making efficiency critical to long-term operating costs.
Aircore EC+ for Pumps maintain high efficiency across a wide operating range, delivering 5–10% higher wire-to-water efficiency than conventional motor systems. With a flat efficiency curve and precise power matching, operators can reduce energy consumption, avoid over-specification, and maximize system performance.
With an integrated VFD, Modbus communications, and IoT connectivity, Aircore EC+ for Pumps provide real-time visibility into speed, power, temperature, and vibration.
Built-in performance monitoring helps optimize system operation, reduce reliance on external instrumentation, and simplify system design—lowering installation costs while improving maintenance insights.

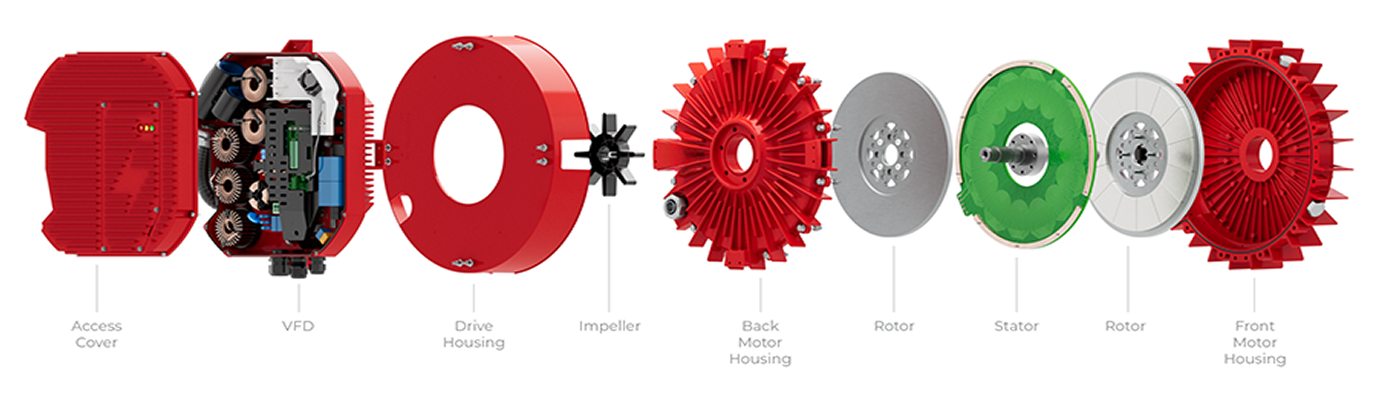

Aircore EC+ for Pumps includes features designed to support long-term operation in demanding environments, such as IP65 enclosure, hybrid ceramic bearings and high-resistance ground. Aircore EC+ is built around a modular, serviceable design that supports easier field maintenance and replacement of key sections.

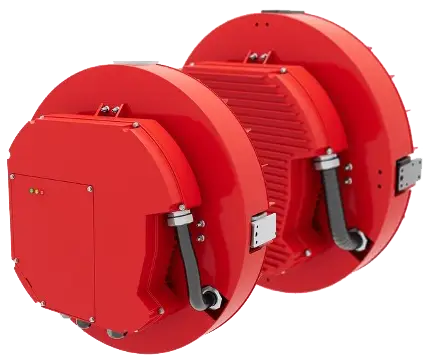

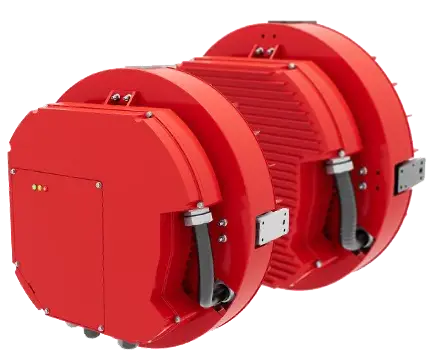

Available in four frame sizes to match your application’s power, torque, and footprint.
Power
1–5 HP
Speed
100-5040 RPM
Weight
67 lbs.
Electrical
460, 415, 575V
Dimensions w/o shaft
14.5” x 9.1”
Built-In Harmonic Mitigation
—
Finned Cover
—
Power
5–7.5 HP
Speed
100-4320 RPM
Weight
81 lbs.
Electrical
460, 415, 575V
Dimensions w/o shaft
16.4” x 8.7”
Built-In Harmonic Mitigation
✔ AFE available
Finned Cover
✔
Power
7.5–10 HP
Speed
100-4320 RPM
Weight
96 lbs.
Electrical
460, 415, 575V
Dimensions w/o shaft
18.6” x 8.7”
Built-In Harmonic Mitigation
✔ AFE available
Finned Cover
✔
Power
10-15 HP*
Speed
100-4320 RPM
Weight
128 lbs.
Electrical
460, 415, 575V (10 HP)
Dimensions w/o shaft
21.1” x 8.9”
Built-In Harmonic Mitigation
✔ AFE available
Finned Cover
✔
*15 HP not available in AFE
Flat efficiency curve across entire operating range reduces energy consumption by up to 25%, rightsizing requires less electrical infrastructure.
Outperforms conventional motors in wire-to-water efficiency by 5-9%
Integrated motor and VFD architecture reduces footprint by 50%, requires less support and simplifies mounting and installation.
From commercial HVAC and water treatment to agriculture and food processing, Aircore EC+ for Pumps help operators move more water and fluids with greater efficiency, reliability and control.
From chillers to heat circulators, Aircore EC+ for Pumps provide intelligent control and efficient performance.
Aircore EC+ for Pumps help industrial buildings move more water and fluids with greater efficiency and control.
Aircore EC+ for Pumps help data centers reduce costs and carbon impact with a serviceable design built for long-term performance and sustainability.
Built for nonstop operation, Aircore EC+ for Pumps deliver the reliability critical water systems demand.
Aircore EC+ for Pumps are designed to support reliable operation in demanding environments where downtime isn’t an option. Premium reliability features help extend equipment life while reducing maintenance needs.
Protects against dust, moisture, and harsh operating environments
Supports longer service life and improved performance
Helps improve protection and system reliability
Aircore EC+ Pumps combine Infinitum’s Aircore motor technology with an integrated VFD and other controls to optimize wire-to-water efficiency, simplify system design, and improve power quality.
Yes. Their compact, lightweight architecture helps save space and simplify integration in existing facilities.
Whether you’re designing a new pumping system or upgrading aging infrastructure, Infinitum’s engineering team can help you select the right Aircore EC+ for Pump solutions.
