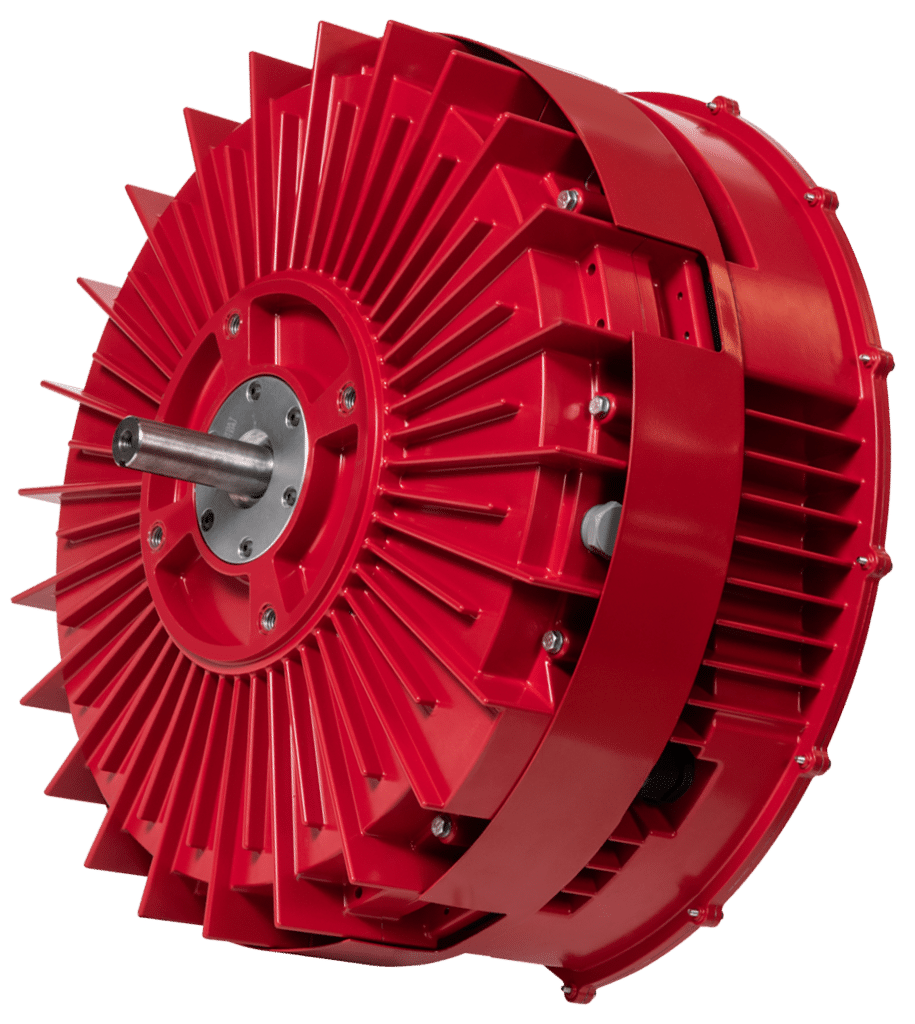

Aircore EC: Integrated motor & drive

Using our innovative PCB stator technology, Aircore EC motors offer class-leading efficiency in a package that is 50 percent lighter and smaller than a traditional iron core motor. The Aircore EC provides the market’s most comprehensive range of power and frame sizes along with IoT capabilities, bringing smart motor technology to a wide range of HVAC and industrial applications.

DOWNLOAD THE CATALOG

Smaller, lighter, more efficient motors

HVAC Fans

Aircore EC motors are smaller and lighter than traditional iron core motors, making it possible for OEMs to directly mount the motor on the fan to develop smaller systems with increased efficiency. With our smaller and lighter motor, HVAC system designers can use arrays of these individual fan/motor units to create reliable systems that are easier and cost effective to install and maintain.

Learn More

Pumps

Beyond the advantages offered by our integrated motor and drive package, we also build our Aircore EC motors to protect against dust ingress and water splashing in harsh environments. Additionally, the small disc-like shape of our motors offers a much needed motor option for easily working within the tight spaces where pumps are typically required.

Learn More

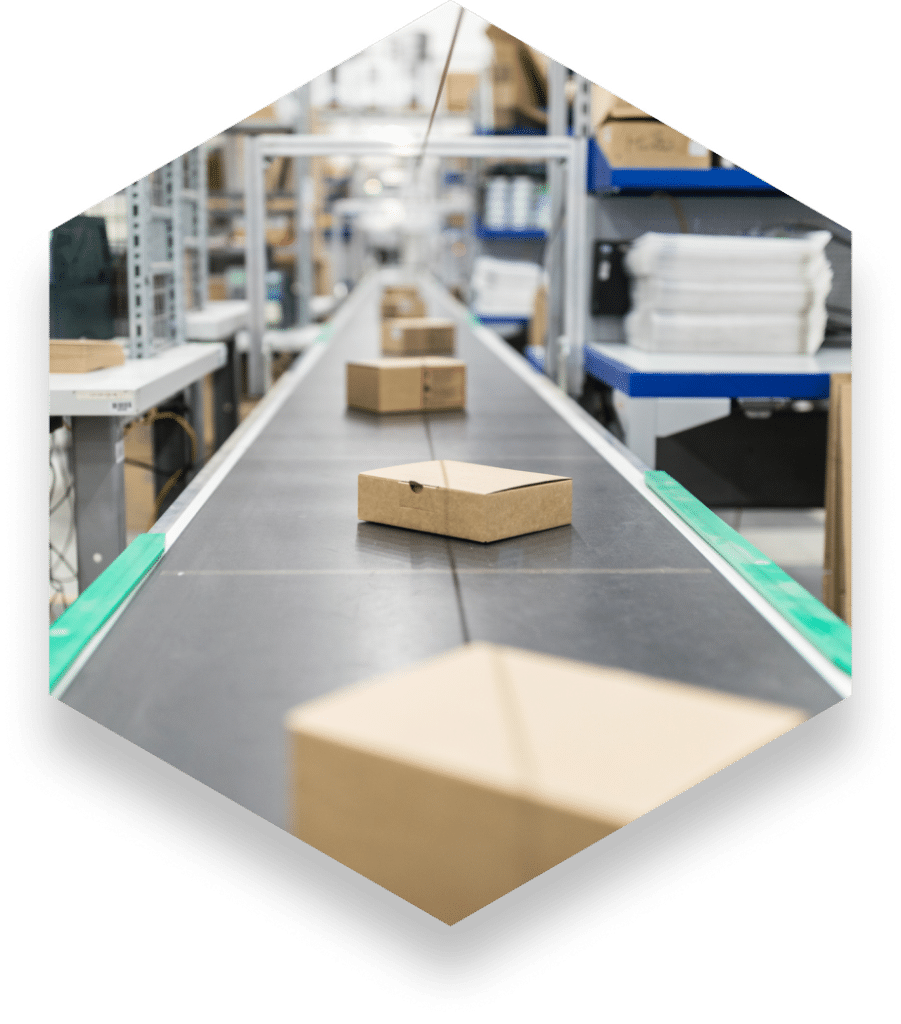

Materials Handling

With high-performance and efficiency available across a wide range of operating speeds, Aircore EC motors are well positioned to provide reliable operation for industrial conveyor and materials handling applications that need high torque and high power at a relatively low RPM. Our motors are rated to function reliably across an operating temperature range of -25° to 40° C and 95 percent relative humidity.

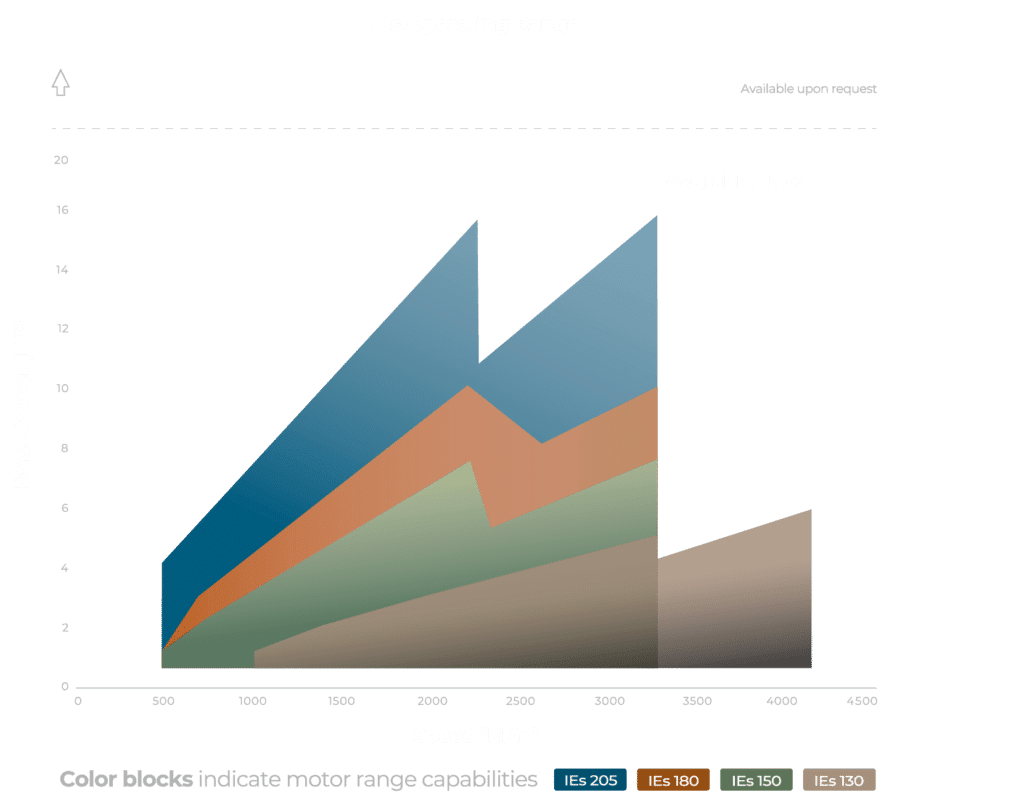

A comprehensive range of power and frame sizes


Solutions to fit your needs

The Aircore EC is the market’s most comprehensive, customizable range of power and frame sizes. Our motors can be ordered with pre-defined conventional ratings or we can customize name plates to meet your specifications.

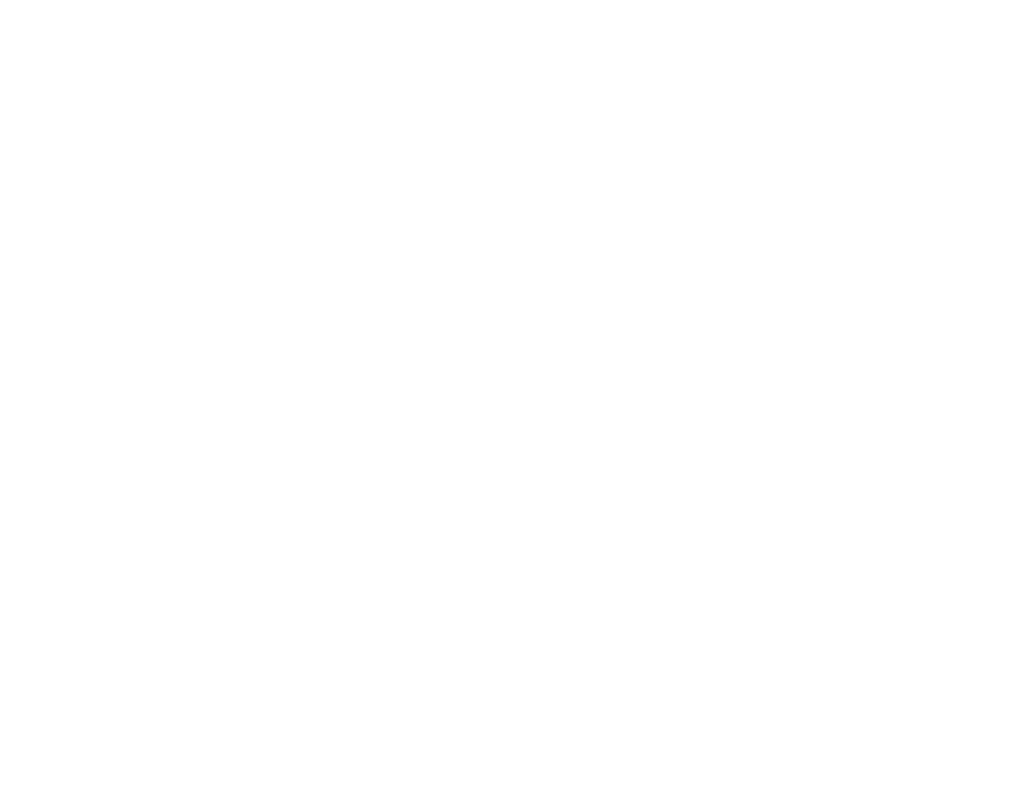

Customer examples

Our motors can be ordered with pre-defined ratings, OR we can customize name plates to meet your specification.

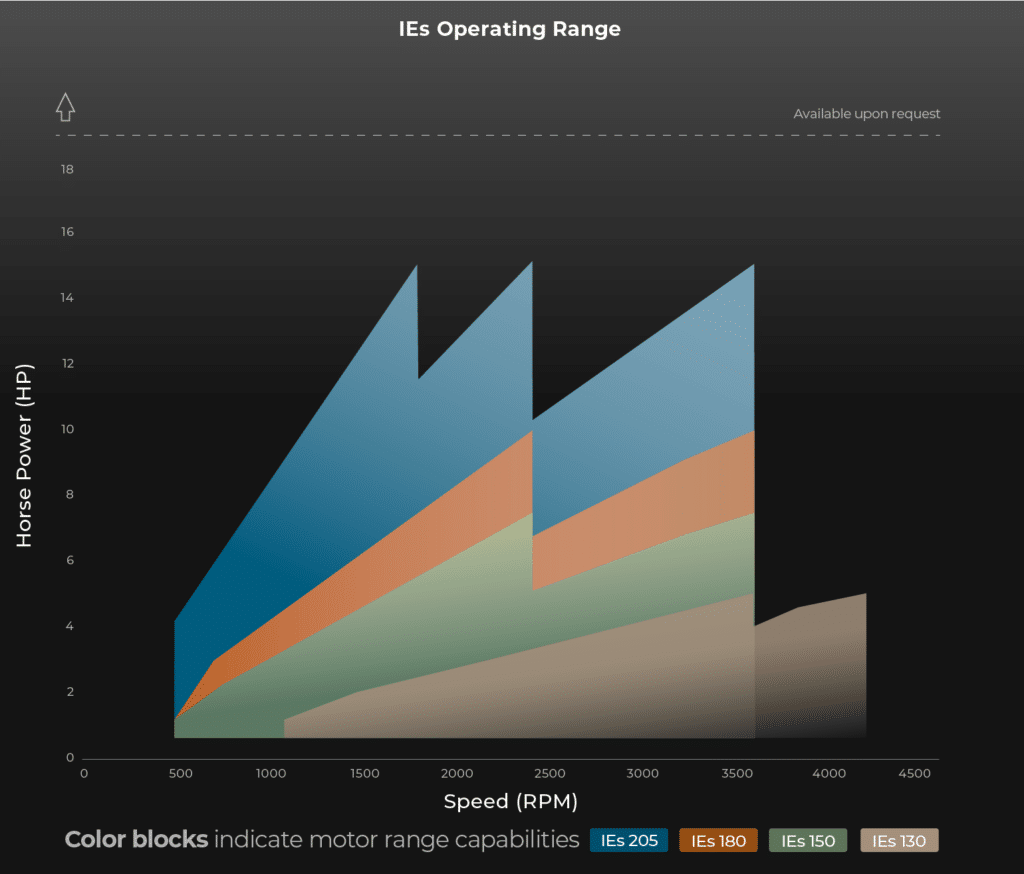

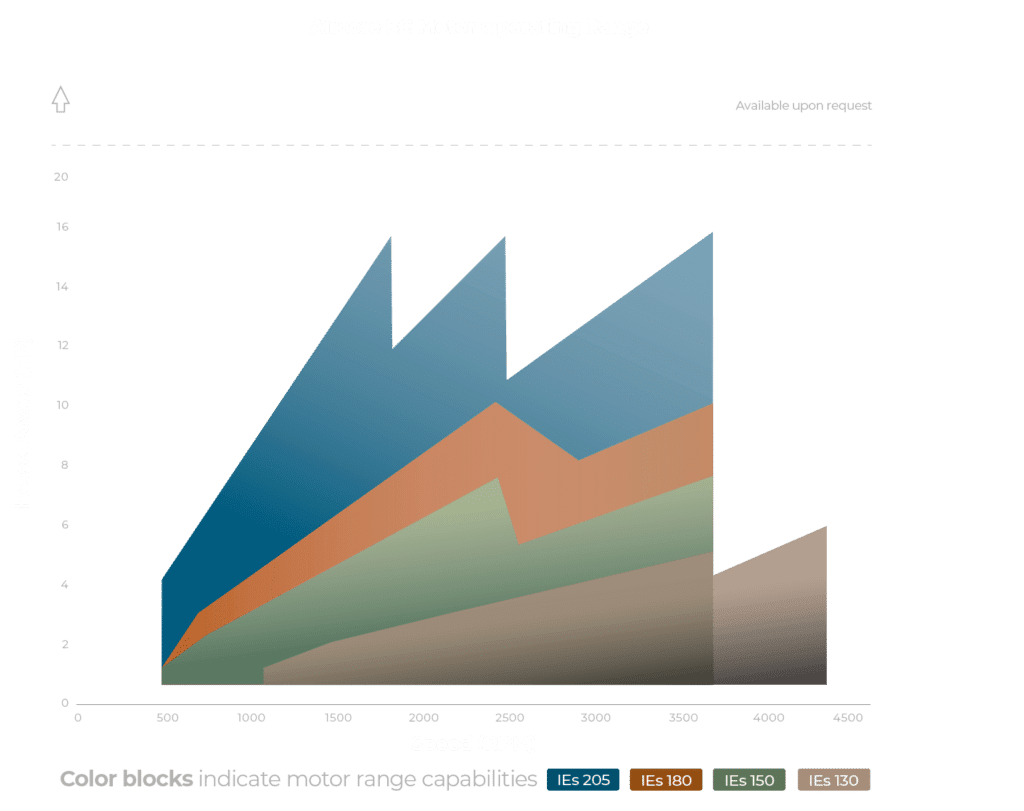

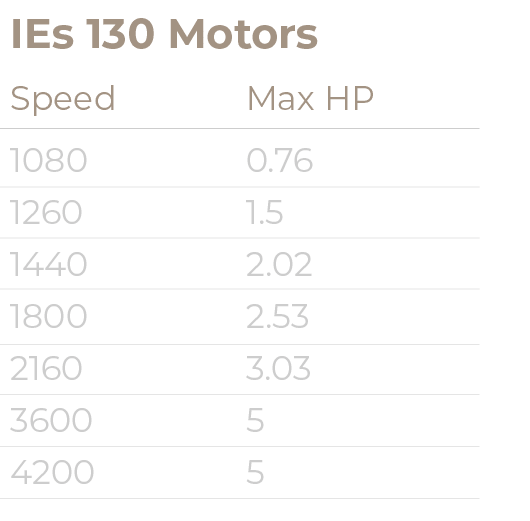

A selection of pre-defined conventional ratings by frame size.

Aircore EC advantages

Aircore EC efficiency

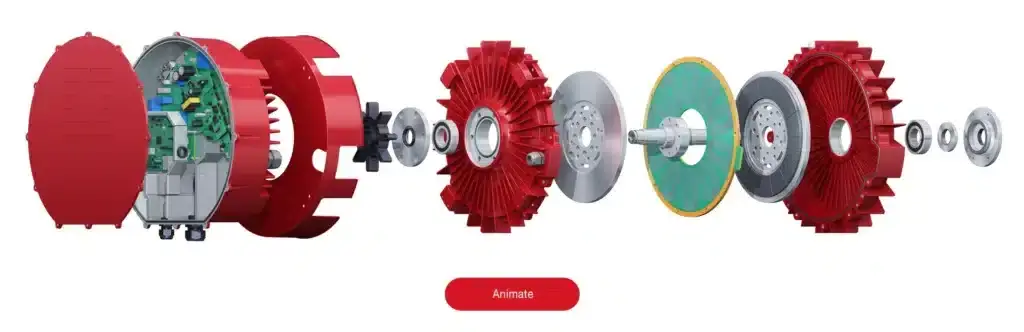

Aircore EC motors are built with a copper-etched PCB stator instead of a traditional iron core and copper windings. This design increases efficiency by eliminating high-loss eddy currents. Our motors are smaller and lighter, making it possible to mount the motor directly to the fan, which increases efficiency by 10 to 15 percent.

Small and powerful
Our lightweight durable materials generate the same amount of power as a traditional iron core motor in a package that is 50 percent lighter and smaller. The PCB stator maximizes power density by combining low-volume, high-energy product magnets and direct coil cooling, providing two to three times the current density of a conventional motor.

Software enabled
Aircore EC smart motor system allows you to create customized sequences for application-specific functionality. Our programmable software provides direct control over operational perimeters providing maximum performance for the lifetime of the motor. Built-in connectivity improves reliability from real-time data monitoring of critical equipment.

Superior control
We designed a state-of-the-art variable frequency drive (VFD) that provides a level of control not available in conventional motors using fixed voltage supply lines. Our VFD facilitates variable speed applications, reducing overall energy usage by running the motor at lower speeds when possible.

Durability and reliability
Third-party reliability tests have shown that our PCB stator is up to 9x more reliable than a conventional copper wire wound stator. This is because our PCB stator design eliminates the common points of failure seen in traditional motors related to copper windings and insulation.

Short lead times
Our simplified motor design and PCB stator technology makes it easy for any local contract PCB manufacturer to build and manufacture our motors, which means we can offer lead times as short as six to eight weeks for Aircore EC motors.

Related resources


Aircore EC product
brochure

Download Brochure

Key considerations when
choosing your next fan motor

Download Whitepaper

Keeping your fan motor
running at maximum efficiency

Read Blog Post

Aircore EC in the news

Infinitum Recognized with Three CES 2023 Innovation Awards Honoree Designations

Infinitum Electric Wins Two Prestigious 2021 R&D 100 Awards

Green Proving Ground Selects Five Innovative Technologies that Improve Building Health and Resilience

Get started

The best way to experience and evaluate industry-changing technology is to try it out firsthand.

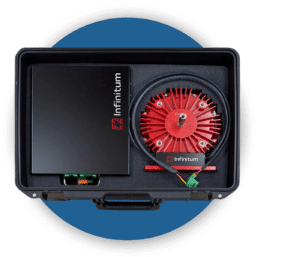

REQUEST AN EVALUATION MOTOR
