Electric Motor Datasheet
Aircore EC
IES150 5HP 2400RPM
Integrated motor & drive
Infinitum’s electric motor with integrated VFD facilitates variable speed applications, reducing overall energy usage by running the motor at lower speeds when possible.
Aircore EC efficiency
The copper-etched PCB stator design increases efficiency by 10 to 15 percent by eliminating high-loss eddy currents and improved fan-to-motor mounting proximity.
- Operating range

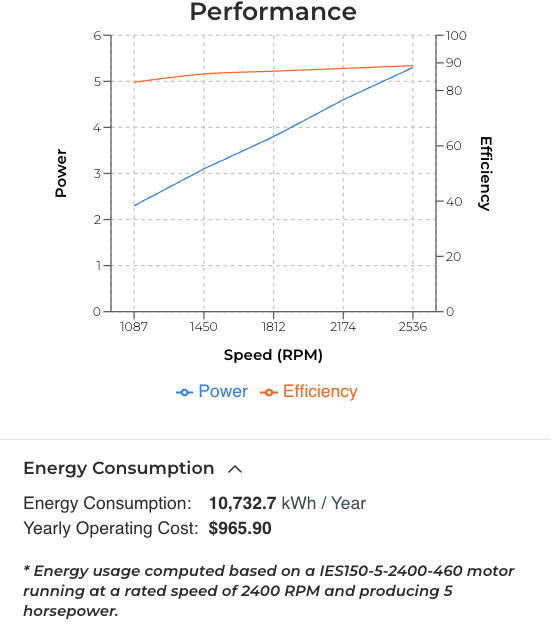

- System efficiency
- Lighter & smaller than similar motors
Easy to install
Aircore EC motors are smaller and lighter than traditional iron core motors, making it possible to directly mount the motor on applications — Resulting in smaller systems with increased efficiency that saves space, reduce wiring costs, and shorten commissioning time.
Easy to maintain
Optional IoT connectivity makes predictive and prescriptive maintenance possible by collecting and analyzing data to provide real-time, actionable insights. In the event a component needs replacing, the modular design facilitates replacing just that part rather than the entire motor.
A motor to last a lifetime
With negligible bearing current, Infinitum electric motor systems are much less likely to fail, and only parts that fail need to be replaced. With our circular design strategy, the majority of components can be reused and kept in service for over 100 years.
Ordering Information
Catalog Number
IES150-5-2400-460-A
Note: See Control Connections
Catalog Number
IES150-5-2400-460-C
Note: See Control Connections
Catalog Number
IES150-5-2400-460-(A/C)-H
Note: See Mechanical Below
| Motor Information | |
| Rated Power | 5 HP, 3.73 kW |
| Rated Torque | 15 Nm, 11.1 ft-lb |
| Rated Speed | 2400 rpm |
| Max Speed | 2880 rpm |
| Min Speed | 100 rpm |
| Weight (Motor and Drive) | 93.2 lbs, 42.3 kg |
| Frame Diameter | 16.18", 41.1 cm |
| Length (Motor and Drive) | 9.4", 23.9 cm |
| System Efficiency | 88.0% |
| Duty Cycle | Continuous |
| Variable Speed | Yes, Integrated VFD |
| Service Factor | 1.0 |
| Motor Thermal Protection | Electronically-Protected L |
| Motor Type | TEFC |
| Enclosure Rating | IP54 |
| Electrical | |
| Supply Voltage | 460 VAC ± 10% |
| Supply Phase | 3 Phase |
| Supply Voltage Frequency | 60 Hz ± 5% |
| Voltage Imbalance | ± 3% Phase to Phase Voltage |
| Short Circuit Current Rating (SCCR) | Input - 5 kA, 500 V maximum |
| Rated Amps | 6.0 A (460 VAC) |
| Motor Insulation Class | B |
| Mechanical | |
| Direction of Rotation | CW/CCW |
| Motor Frame Material | Aluminum |
| Rotor Inertia | 0.49 kg/m^2 |
| Bearing Type - DE | Standard: Steel, 6206 sealed, Permanently Lubricated Optional: Hybrid Ceramic (-H in Catalog Number) |
| Bearing Type - NDE | Standard: Steel, 6206 sealed, Permanently Lubricated Optional: Hybrid Ceramic (-H in Catalog Number) |
| Grease Specification | Mobil Polyrex EM |
| Regreasable | No |
| Grounding Brushes | Included - DE |
| Shaft Design | Keyed |
| Motor Mounting Position | Horizontal or Vertical (Shaft Down) |
| Motor Mounting Type | C-Face (182TC) and Body Mount |
| Ambient Operating Conditions | ||
| Condition | Operation | Storage & Transportation |
| Altitude | 0 to 1,000 m (3,300 ft.) above sea level 9% power derate per 1,000 m up to 4,000 m | NA |
| Air Temperature | -25 to 40 °C (-13 to 104 °F) | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 95%, No condensation allowed | 95%, No condensation allowed |
| Contamination Levels | No conductive dust allowed | No conductive dust allowed |
Power, intelligence and controls all in one
We designed our VFD and motor to meet the thermal performance of various load conditions. Our integrated VFD continuously monitors voltage, currents, and the temperature of electronic circuits. The VFD is specifically tuned to the motor — matched for stress and load conditions, with fewer opportunities for failure.
Real-time IoT operational monitoring
The optional IoT module provides static and real-time operational information. This IoT module utilizes an FCC-certified Digi Xbee® 3 hardware platform, communicating cloud-based applications via a cellular (4 G LTE-M) transceiver. End-to-end encryption, authentication and integrity are provided via the Digi module.
Electric Motor Mounting Information
Below are the basic measurements needed for installation tasks.
• There are four mounting pad locations.
• Each pad is spaced 90° apart, containing 4 mounting holes and one lifting eye hole.
• This design accommodates many different installation arrangements.
| Control Connections | ||
|
||
| Description | Quantity | Type |
| Analog Input Software selectable for voltage or current input | 1 |
|
| Analog Output (See Above) Software selectable for voltage or current output | 1 |
|
| Auxiliary Voltage | 1 |
|
| Digital Input | 4 |
|
| Digital Output | 2 |
|
| Relay Output | 1 |
|
| EIA-485 Interface for Modbus RTU | 1 |
|
| Regulatory | |
| UL 1004-7 | Standard for Electronically Protected Motors |
| UL 1004-1 | Rotating Electrical Machines – General Requirements |
| CSA C22.2 No.77 | Motors with Inherent Overheating Protection |
| UL 61800-5-1 | Standard for Adjustable Speed Electrical Power Drive Systems, Part 5-1: Safety Requirements & Electrical, Thermal and Energy |
We reserve the right to make technical changes or modify the contents of this document without
prior notice. Copyright© 2023 Infinitum Electric, Inc. All rights reserved.
Infinitum 20230202
